Automatic system for plate and tape demounting
SYS-DEMOUNTER
THE SYS-DEMOUNTER
A SAFE AND EASY WAY TO REMOVE THE PLATES AND THE TAPE
DEMOUNTER: SAFE + EASY
What is a Demounter?
The new DEMOUNTER is developed to remove plates and tape from sleeves.
The DEMOUNTER replaces the need of an operator to remove plates or mounting tape, an operation that can be time consuming, especially when removing wide plates.INNOVATION
A brilliant idea

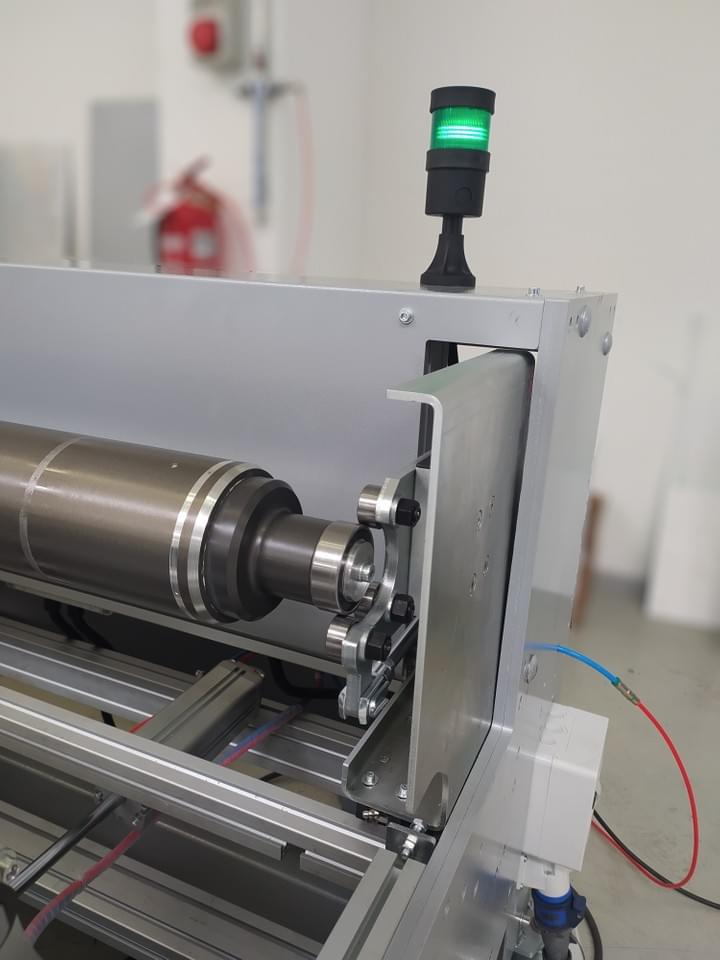

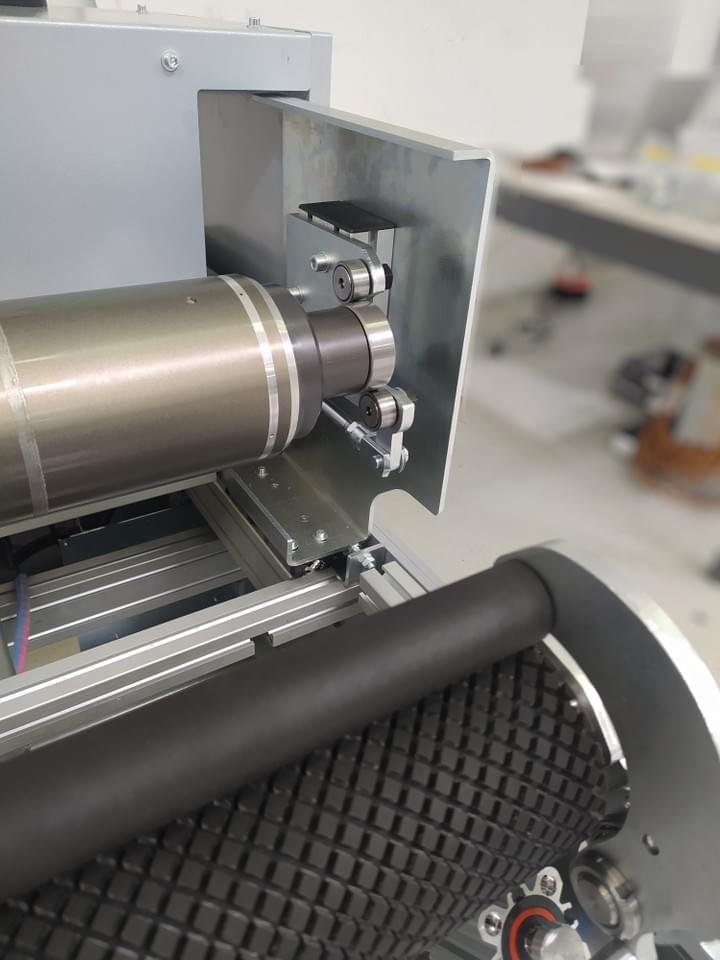

A pneumatic clamp (specifically cushioned in order to prevent plate damage) locks a side of the plate, then the machine automatically pulls the plate with a constant speed without tearing it.

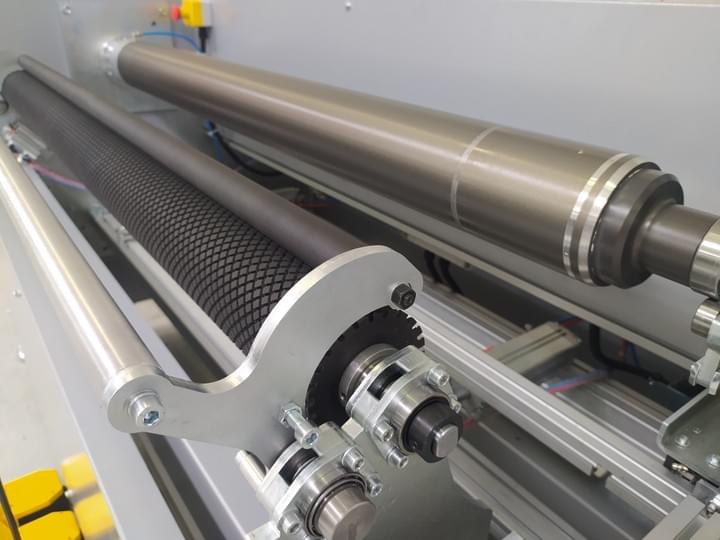

Equipped with an expandable shaft, the machine can work with all the sleeve inner diameters.ADVANTAGES:
How it can improve your job
- It replaces human interaction, increasing safety in the workplace
- Controlled pulling speed prevents any possible damage to plates and sleeves
- Time-saving
AVAILABLE MODELS:
Working width
Model 120 : 1200mm / 47''
Model 140 : 1400mm / 55''
Model 160 : 1600mm / 63''
Model 200 : 2000mm / 78''
"VP-HT DEM"
THE DEMOUNTER INTEGRATED INTO THE PLATE MOUNTER:
The Demounter can also be integrated into the Plate Mounting machine: just one machine to operate, a great save of time for small companies
A closer look
