  • midi

    THE PLATE MOUNTERS

    FOR MID-WEB FLEXO



  • midi

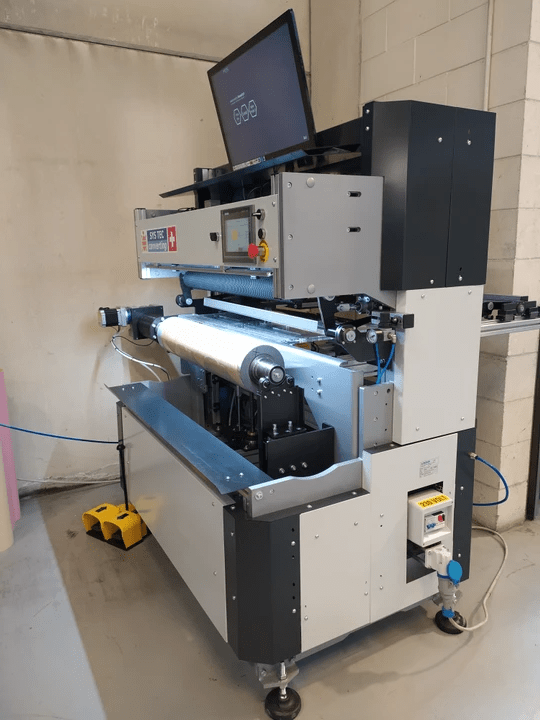

    MID-SIZE FLOOR PLATE MOUNTER

    broken image
  • Highlights about MIDI - Mid-Size floor plate mounter

    We let the technology speaks for itself.

    LABEL POWER !



    FLOOR STRUCTURE:

    • STURDY MECHANICS DESIGNED TO SUPPORT ROLLS > 500 MM



    AVAILABLE FOR:

    • SLEEVES
    • SHAFTLESS CYLINDERS
    • SHAFTED CYLINDERS

    TECHNOLOGY:

    • N. 2 hi.def. color cameras, 16 million colors, optical zoom up to 100X
    • LCD TFT 19 inches Monitor
    • Photosplit, software for the cameras management in Windows 10
    • VIRTUAL IMAGE, that allows the mounting of plates without cross-marks or references providing a virtual proof.
    • USB Hub
    • Local area network connection
    • Remote control software (Sys-Tec Service Center connection)
    • Sticky back dispenser
  • Overview

    What's new on MIDI

    broken image

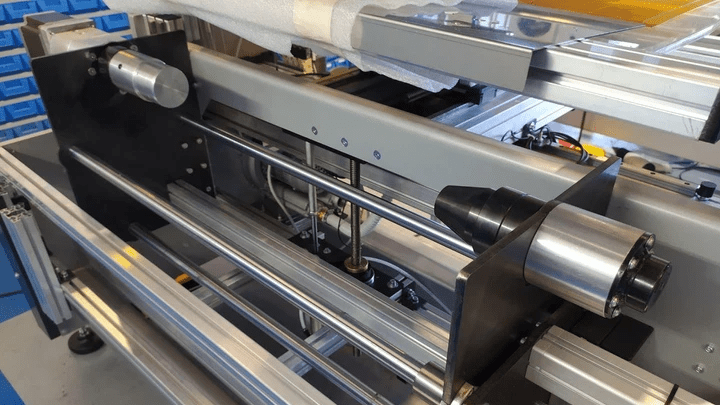

    CUSTOMIZED MECHANICAL STRUCTURE

    the support of the cylinders can be defined by the customer

    The MIDI plate mounter is MID-SIZE plate mounter, with floor structure, designed to support narrow cylinders or sleeves with a sturdy self-standing structure (it doesn't need the table for tabletop placing).

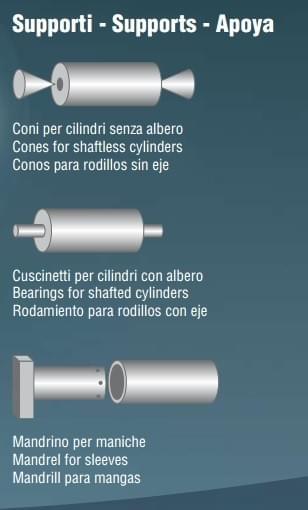

    The MIDI plate mounter is available in three mechanical configuration, considering the printing rolls of the customer:

    • with sliding cone, for shaftless cylinders
    • with ball bearings, for shafted iron rolls,
    • with air mandrel, for sleeves only



  • Discover our mid-web flexo plate mounters!

    A complete range of mounter for all the needs

    MIDI 3

    Motorized

    plate mounter

    This is the entry model:

    • motorized cameras and mandrel
    • HD digital cameras
    • MOUNTING ASSISTANT for pattern recognition

    MIDI 5

    Electronic

    plate mounter

    Like the MIDI 3, but with more:

    • electronic control of the axis with absolute encoders on the cameras and the cylinder
    • ability to save and load jobs

    MIDI 9

    Automatic

    plate mounter

    Watch a demo!

    Like the MIDI 5, but with more:

    • automatic mounting of any plate, in any condition, with the iTABLE technology
    • iTABLE smart mounting motorized table
  • The MIDI mounter is available in 3 mechanical configurations

    broken image

    SLEEVES

    broken image

    SHAFTED CYLINDERS

    broken image

    SHAFTLESS CYLINDERS

    broken image

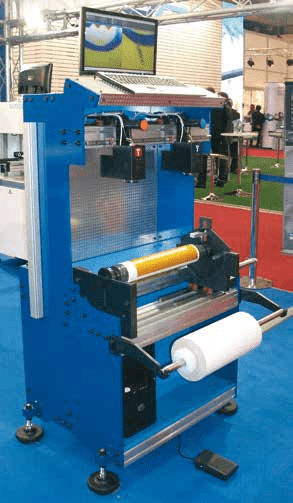

    Version for SLEEVES

    This version is equipped with air mandrel for sleeves, with cantilever sleeve change-over

    broken image

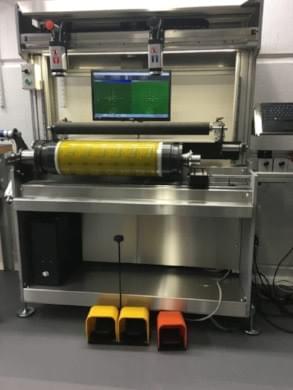

    Version for SHAFTED CYLINDERS

    This version is designed for solid rollers with shaft and side disks (e.g. Bobst Gidue, Lombardi, etc.)

    broken image

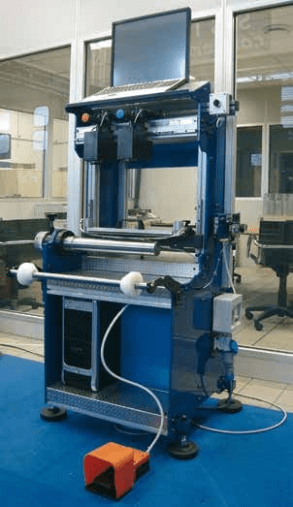

    Version for SHAFTLESS CYLINDERS

    This version is designed for shaftless cylinders, and it is equipped with sliding cones to lock the inner bearing of the cylinders.

  • A closer look

    Take a look and enjoy!
