  • THE SEMI-AUTOMATIC PLATE MOUNTER FROM SYS TEC



    MIDI-iTABLE



    AUTOMATIC PLATE MOUNTER FOR NARROW AND MID-SIZE WEB



  • Site map:

    Plate mounters > Narrow web plate mounters > MIDI-iTABLE automatic mounter for narrow web

  • AUTOMATIC MOUNTING SYSTEM WITH ULTRA-HD SMART DIGITAL CAMERAS

    broken image
    broken image

    THE AUTOMATIC MOUNTER FOR THE NARROW WEB AND COMPACT CI FLEXO

    Connecting the Narrow and the Wide web flexo

    This automatic mounter is designed to work with the new flexo presses for labels, but also with the new generation of compact flexo presses, like the Uteco ONYX XS, the Comexi F4, the K+B EVO XC, the W+H MIRAFLEX II M...

    The new fantastic compact presses deserve a fantastic compact automatic mounter

    broken image

    I-TABLE, THE AUTOMATIC MOUNTER

    A big innovation from SYS TEC

    i-Table is the new automatic mounting system available for SYS TEC plate mounting machines.

    It arose by SYS TEC research & development and permits the automatic positioning of the plates in the right mounting position.



    broken image

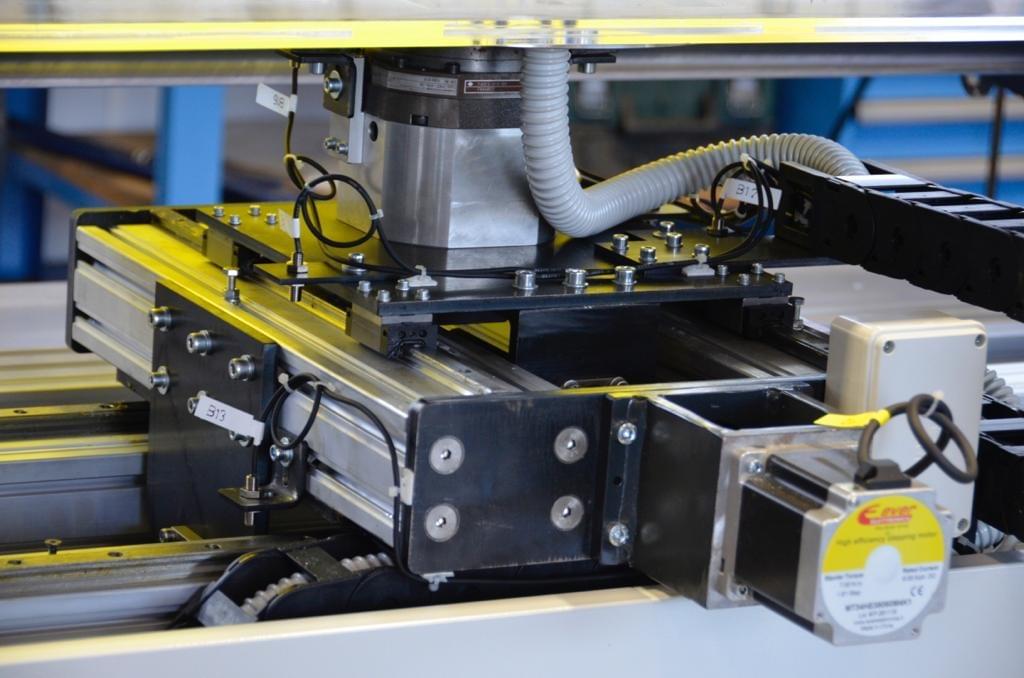

    i-Table is an intelligent robotized table, it can move with 3 freedom degrees positioning the plates with centesimal precision.

    It works in combination with advanced digital cameras, recognizing the cross-marks on the plates and automatically, comparing them with the Virtual Image and then adjusting the plate position on the sleeve.

    The system provides the automatic positioning of the plates on the sleeve and the sticking of the plates on the tape with the automatic pressing roll.



    The smart vision system recognizes the marks on the plates and matches them with the virtual image

    HOW DOES IT WORK?

    The operator places the plate on the table, then the machine provides the following steps:

    • Automatic recognition of the marks on the plate and comparing with the Virtual Image
    • Automatic adjustment of the plate to the target position
    • Automatic fixing of the plates on the sticky-back with the pressing roll

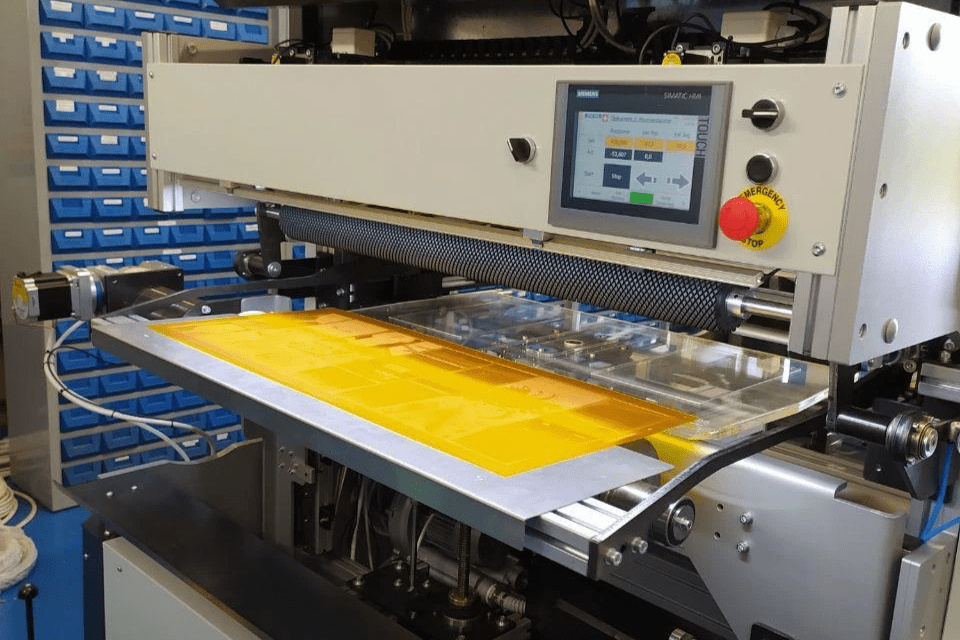

    Automatic movement of the mounting table

    ADVANTAGES:

    • It works with any kind of cross-marks or pattern on plates
    • High mounting precision
    • Reduction of the time needed to mount the plates
    • Elimination of the human error while mounting the plates
    • Jobs repeatability
    • The most advanced technology available on the market.



  • Overview

    What's new on MIDI

    broken image

    CUSTOMIZED MECHANICAL STRUCTURE

    the support of the cylinders can be defined by the customer

    The MIDI plate mounter is MID-SIZE plate mounter, with floor structure, designed to support narrow cylinders or sleeves with a sturdy self-standing structure (it doesn't need the table for tabletop placing).



    The MIDI plate mounter is available in three mechanical configuration, considering the printing rolls of the customer:

    • with sliding cone, for shaftless cylinders
    • with ball bearings, for shafted iron rolls,
    • with air mandrel, for sleeves only



  • The MIDI-iTABLE is available in 3 mechanical versions

    broken image

    SLEEVES

    broken image

    SHAFTED CYLINDERS

    broken image

    SHAFTLESS CYLINDERS

    broken image

    Version for SLEEVES

    This version is equipped with air mandrel for sleeves, with cantilever sleeve change-over

    broken image

    Version for SHAFTED CYLINDERS

    This version is designed for solid rollers with shaft and side disks (e.g. Bobst Gidue, Lombardi, etc.)

    broken image

    Version for SHAFTLESS CYLINDERS

    This version is designed for shaftless cylinders, and it is equipped with sliding cones to lock the inner bearing of the cylinders.

  • Highlights about MIDI-iTABLE AUTO

    We let the technology speaks for itself.

    FEATURES

    • Structure for SLEEVES, SHAFTED CYLINDER or SHAFTLESS CYLINDERS
    • up to 1000 mm width
    • Machine designed to mount with microdots.
    • The plate is laid on the back table and the position of the mandrel is adjusted up/down to match the external repeat in the mounting position.

    CAMERAS

    2 HD digital hi.res. digital cameras
    with high optical magnification


    Camera movement: MOTORIZED
    with TOUCHLESS SLIDING SENSOR


    Encoders on cameras for real-time positioning: YES

    MANDREL ROTATION

    MOTORIZED with direct stepper motor

    ZERO BACKLASH GEARBOX

    CONTROL OF THE ROTATION AND MANDREL ANGULAR POSITION

    SOFTWARE

    • WEB BASED INTERFACE
    • VIRTUAL IMAGE
    • SOFTWARE FOR AUTOMATIC STAGGERING POSITIONS
    • REMOTE ASSISTANCE (Sys Tec Service Center app)





  • Gallery

    Photos & videos about the MIDI-iTABLE

    Version for sleeves
    MIDI-iTABLE, automatic mounter, version for sleeves
    Version for shaftless cylinders
    MIDI-iTABLE, automatic mounter, version for cylinders
    MIDI-iTABLE, automatic mounter, version for sleeves
    MIDI-iTABLE, automatic mounter, version for SHAFTLESS cylinders
    MIDI-iTABLE, automatic mounter, version for SHAFTLESS cylinders
    MIDI-iTABLE, automatic mounter, version for SHAFTLESS cylinders
    MIDI-iTABLE, automatic mounter, version for SHAFTLESS cylinders
    broken image
  • A closer look

    Demo of the automatic alignment of the plate on the new MIDI iTABLE AUTO plate mounter.

    The plate is automatically aligned in less than 30 secs.

    This automatic mounter is designed for narrow web flexo / label printing / compact CI flexo presses.
