SHARP IMAGES, FINE PRINTING, STUNNING COLORS
AUTOMATIC PRINTING CARRIAGE ON TABLE
Overview
What's new on the "RAINBOW" screen printing carriage machine
FINE QUALITY PRINTING
The increased demand for printed fabrics needs new solutions.
The screen printing carriage is the most advanced answer to the textile companies which want to print their fabrics and complete in this way the production cycle.
The screen printing technology, thanks to the high level of coverage of the inks, gives high-quality printing results, with a perfect definition of the printing subject, consistent and vibrant colors, and sharp images.

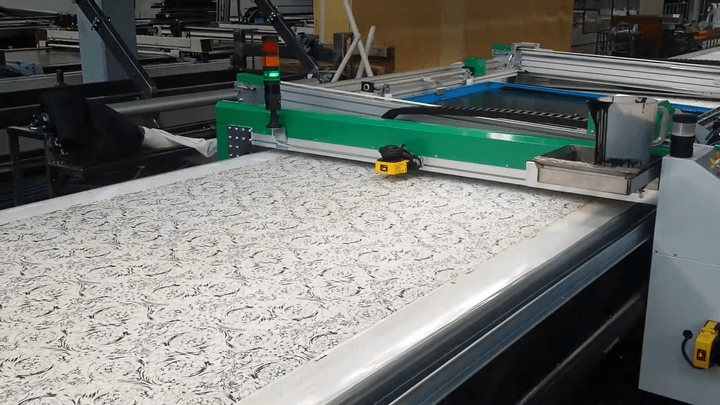

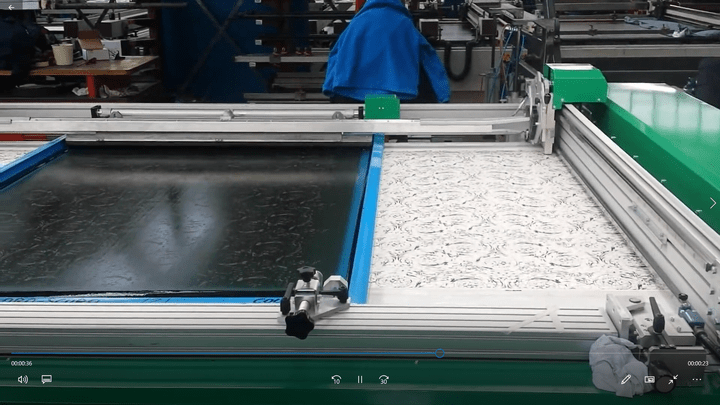

The fabric is unwinded on the self-sticking table (40 m or 80 m length), then the screen printing carriage performs a perfect printing color after color.
MARKETS
The Screen Printing Machine is suitable for any kind of fabric, without the limitation of its composition, density, or thickness:
- silk (scarves/ties)
- knit (cotton, lycra, wool, synthetic)
- upholstery
TECHNICAL SPECIFICATIONS
- Length of the table: 40 m or 80 m
- Width of the table: 1.8 m - 3.2 m
- Maximum dimension of the screen: up to 3 x 3 m

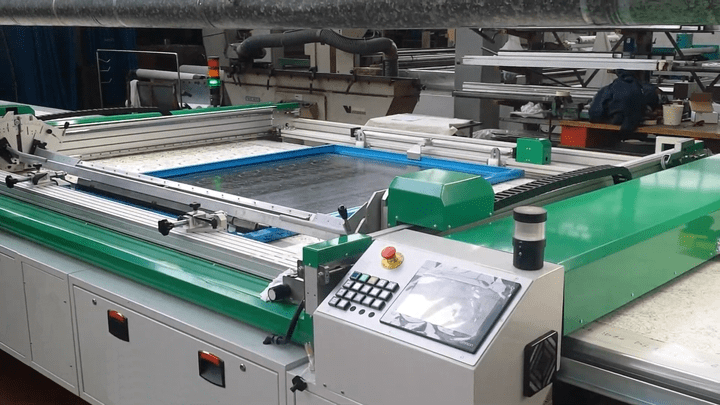

- Computerized advancement of the screen managed the PLC
- The screen print technology can print an unlimited number of colors
ABOUT THE SCREEN PRINTING TECHNIQUE
- Screen printing is a printing technique where a mesh is used to transfer ink onto the substrate, except in areas made impermeable to the ink by a blocking stencil. The blade is moved across the screen to fill the open mesh apertures with ink, and a reverse stroke then causes the screen to touch the substrate momentarily along a line of contact.
- One color is printed at a time, so several screens can be used to produce a multi-colored image or design.
- Unlimited colors
- High level of coverage of the inks
ADVANTAGES
- Perfect printing, finest quality
- Suitable for any kind of fabrics
- Unlimited colors
- High level of coverage of the inks
- Fast and precise workflow
Overview
What's new on STAR-HD
DESIGNED FOR MICRODOTS
The highest magnification
The new STAR-HD is designed to mount the smallest microdots with the highest precision and ripetibility.
Cameras work close to the plate, in order to have the highest magnification, and the mandrel position is adjusted up/down by the machine to match the correct work position.
With heavy duty and reliable mechanics
completely redesigned to
easily handle dynamic torsions
and heavy loads.
A precise system, designed to meet the highest quality standards.
A COMPLETE CONFIGURATION
Equipped with all the devices you need
The machine comes with a very complete configuration:
- Double-sided table
- Nip-roller
- Sliding monitor
A LARGE CHOICE OF OPTIONS
Upgradable as you like
In order to offer the most flexible
machine, it’s possibile to upgrade
the machine with several options:- Additional cameras
- Table for tape cutting
- Dispenser for sticky-back
- Brushless direct-drive servomotor for mandrel rotation
- Touch-screen monitor
